Grouting Design Strategies for Swansea's Complex Ground Conditions

Q: What is the typical cost range for a grouting design package in Swansea?

For a complete grouting design package including desk study, ground investigation specification, mix design, method statement, and on-site verification planning, costs in Swansea typically range from £980 to £3,570. The final figure depends on the complexity of the ground conditions, the volume of grout, and whether the project is in a known mining risk zone. A simple underpinning grout design for a residential extension in Sketty will sit at the lower end, while a full curtain grouting design for a commercial basement near the river will require more detailed analysis and instrumentation planning.

Q: Which grout type is best suited for the coal measures in Swansea?

The choice depends on the target. For filling voids in collapsed mine workings, we specify low-mobility cementitious grouts with a high solids content to limit travel distance and control volume. Where the goal is to reduce the mass permeability of fractured Pennant Sandstone, microfine cements with a D95 below 12 microns provide better penetration. In zones with active groundwater flow, such as near the Tawe, we may specify rapid-set polyurethane grouts to prevent washout, always with careful pressure control to avoid hydrofracturing.

Q: How do you verify that the grouting design has actually worked?

Verification is built into the design from the start. We define performance criteria (target permeability, minimum unconfined compressive strength, or maximum allowable settlement) and then select verification methods to match. This usually involves a combination of pre- and post-grouting Lugeon or packer permeability tests, core drilling to inspect grout penetration visually, and cross-hole seismic tomography for curtain walls. In Swansea's mining zones, we also use downhole camera surveys to confirm that major voids have been filled before the structure loads the ground.

The ground profile in Swansea changes radically over short distances. You can be on the well-drained Pennant Sandstone of Kilvey Hill in the morning and dealing with saturated alluvial silts near the Tawe River by lunchtime. This geological contrast, with the Swansea Fault running through the city, means a single grouting design never works twice. The coal measures and glacial deposits that cover much of the city centre introduce voids, variable permeability, and old mine workings that demand a tailored approach. We combine site-specific data from test pits with real-time grout take monitoring to adjust the design during injection. For sites near the waterfront where the tidal range is over 10 metres, pore pressure response becomes a key design input. Every grouting programme we deliver in Swansea starts with a thorough desk study against the BGS mapping and then moves quickly to field verification because the historical mining records are often incomplete.

In Swansea, grouting design is driven by the legacy of coal workings and the Swansea Fault. A desk study without field verification is a liability.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›

VIEW ALL SLOPES & WALLS ›

Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›

VIEW ALL EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›

VIEW ALL ROADWAY ›

Approach and scope

In Swansea, the interaction between the drift deposits and the underlying bedrock controls grout behaviour more than most engineers expect. The superficial boulder clay can be stiff and apparently tight, but it often contains lenses of sand and gravel that open up under pressure. We routinely see grout travel paths that don't match textbook predictions. A proper design therefore specifies a range of grout rheologies, starting with high-penetration microfine cements for the finer sands and switching to stable, low-mobility mixes when larger voids are encountered. Our laboratory carries out Marsh funnel and cohesion tests on each batch against the project specification. For sites with a history of shallow coal workings, we often integrate stone columns as a preliminary ground treatment before the grouting phase, especially where collapse potential exceeds 5%. Instrumentation is non-negotiable: we specify real-time pressure, volume, and flow monitoring linked to refusal criteria defined in the method statement. This approach, calibrated with in-situ permeability tests run before and after injection, provides the verification that the Environment Agency and local building control expect in SA postcodes.

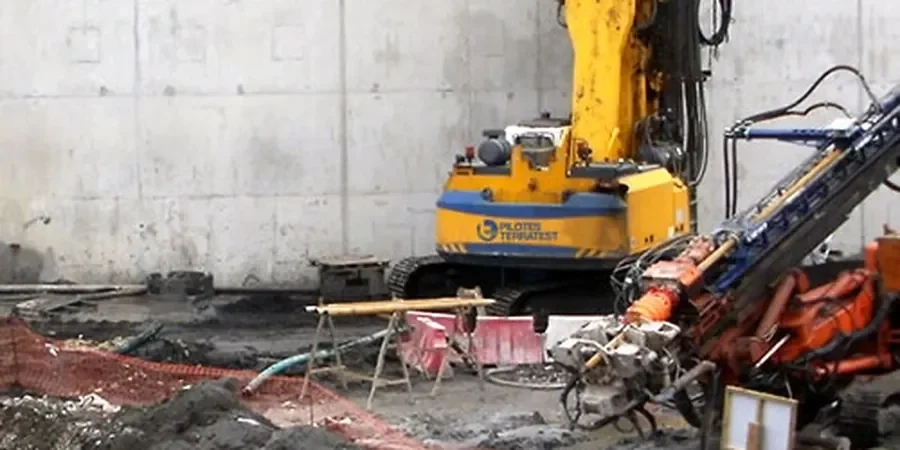

Grouting Design Strategies for Swansea's Complex Ground Conditions — Technical reference — Swansea

Site-specific factors

BS EN 1997-1 requires that the design of Improvement be verified against limit states, and in Swansea this takes on particular weight. The city's mining history means that a ULS failure in a grouted zone can propagate rapidly if an undetected shaft or adit collapses under hydraulic pressure. The 2015 BS 5930 update reinforced the need for thorough ground investigation before any grouting work, precisely because of risks like those found in the Swansea coalfield. Hydrofracturing is a real concern when injecting in the confined aquifers of the Pennant Measures, where excessive pressure can open existing fractures and connect previously isolated groundwater compartments. Our designs always include a sensitivity analysis on injection pressure, backed by CPT testing to map the undrained shear strength of the clays that cap the coal seams. The worst outcome is uncontrolled surface heave in an urban setting like Uplands or Sketty, where terraced housing sits directly on shallow mine workings.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Relevant standards

BS EN 1997-1:2004 (Eurocode 7: Geotechnical Design) + UK National Annex, BS 5930:2015+A1:2020 (Code of practice for ground investigations), BS EN 12715:2020 (Execution of special geotechnical work — Grouting), CIRIA C760 (Guidance on grouting for ground engineering)

Technical parameters

Parameter	Typical value
Design standard	BS EN 1997-1:2004 + UK National Annex
Investigation standard	BS 5930:2015+A1:2020
Grout types specified	Microfine cement, ultrafine, chemical (acrylate), polyurethane
Typical target permeability post-grouting	< 5x10^-7 m/s for cut-off curtains
Monitoring parameters	Pressure (bar), flow rate (L/min), volume (L), pressure/volume ratio
Refusal criteria	Pressure plateau at target + 2 bar for 3 min, or volume limit reached
Verification method	Lugeon/packer testing, core recovery, cross-hole seismic

Q&A

What is the typical cost range for a grouting design package in Swansea?

For a complete grouting design package including desk study, ground investigation specification, mix design, method statement, and on-site verification planning, costs in Swansea typically range from £980 to £3,570. The final figure depends on the complexity of the ground conditions, the volume of grout, and whether the project is in a known mining risk zone. A simple underpinning grout design for a residential extension in Sketty will sit at the lower end, while a full curtain grouting design for a commercial basement near the river will require more detailed analysis and instrumentation planning.

Which grout type is best suited for the coal measures in Swansea?

The choice depends on the target. For filling voids in collapsed mine workings, we specify low-mobility cementitious grouts with a high solids content to limit travel distance and control volume. Where the goal is to reduce the mass permeability of fractured Pennant Sandstone, microfine cements with a D95 below 12 microns provide better penetration. In zones with active groundwater flow, such as near the Tawe, we may specify rapid-set polyurethane grouts to prevent washout, always with careful pressure control to avoid hydrofracturing.

How do you verify that the grouting design has actually worked?

Verification is built into the design from the start. We define performance criteria (target permeability, minimum unconfined compressive strength, or maximum allowable settlement) and then select verification methods to match. This usually involves a combination of pre- and post-grouting Lugeon or packer permeability tests, core drilling to inspect grout penetration visually, and cross-hole seismic tomography for curtain walls. In Swansea's mining zones, we also use downhole camera surveys to confirm that major voids have been filled before the structure loads the ground.

Location and service area

We serve projects across Swansea and its metropolitan area.

View larger map
