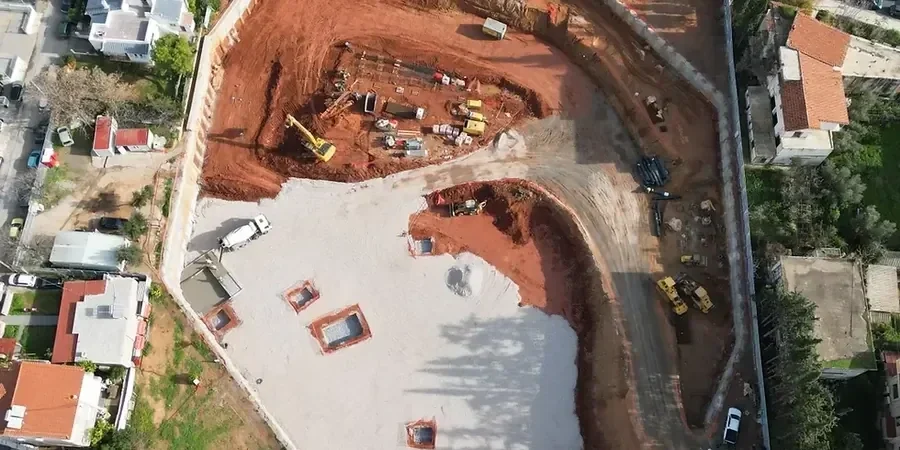

Geotechnical Design of Deep Excavations in Swansea

A basement dig on the SA1 waterfront hit groundwater at less than two metres, turning what looked like a routine cut into a logistical challenge that demanded immediate shoring redesign. That is the reality of deep excavation in Swansea, where the post-industrial geology along the Tawe corridor and the variable drift deposits overlying the South Wales Coal Measures create a layered set of constraints. Our team steps in at the feasibility stage to model the soil-structure interaction, combining CPT test profiling to trace the depth to competent bedrock with seismic refraction surveys that map the rippability of the upper strata. For schemes in the Maritime Quarter where retaining systems must hold back both tidal groundwater and soft alluvium, we integrate slope stability analysis to ensure the global factor of safety remains above the trigger values set by BS EN 1997-1:2004.

A deep excavation in Swansea is essentially a temporary dam: control the groundwater first, then design the structure, not the other way around.

Our service areas

Slopes & Walls

Slope stability analysis ›Active/passive anchor design ›Retaining wall design ›

VIEW ALL SLOPES & WALLS ›

Excavations

Geotechnical analysis for soft soil tunnels ›Geotechnical design of deep excavations ›Geotechnical excavation monitoring ›

VIEW ALL EXCAVATIONS ›

Roadway

Flexible pavement design ›Rigid pavement design ›CBR study for road design ›

VIEW ALL ROADWAY ›

Approach and scope

Swansea's exposure to Atlantic weather fronts means that an open excavation can transition from stable to flooded within a single winter storm, so our designs build in solid dewatering and surface water management from day one. The Pennant Sandstone that underpins much of the city centre offers excellent bearing but can fracture unpredictably, which is why we specify empirical rock mass classification alongside core logging to calibrate the support pressure envelope. We regularly pair in-situ permeability testing with piezometric monitoring to track how the tidal range of Swansea Bay influences pore pressures behind a secant pile wall, a detail that generic desktop studies miss entirely. When the scheme requires vertical cuts exceeding six metres in glacial till, we model the undrained shear strength profile using data from high-quality sampling to avoid the over-design that inflates project costs without adding safety.

Geotechnical Design of Deep Excavations in Swansea — Technical reference — Swansea

Site-specific factors

Swansea's urban core expanded rapidly during the copper smelting era, leaving a legacy of made ground, buried foundations, and undocumented backfill that can collapse a trench without warning. The Lower Swansea Valley was once described as a lunar landscape, and while the regeneration has been extraordinary, the subsurface memory of industrial activity persists. Encountering slag-rich fill or a forgotten culvert mid-excavation can delay a project by weeks if the design has not anticipated it, so we build observational method triggers into every temporary works package. Adjacent to the River Tawe, the risk of basal heave in soft estuarine deposits is real and must be checked against the short-term stability of any proposed cut, particularly where neighbouring structures founded on shallow footings lie within the zone of influence.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnical-engineering.biz

Relevant standards

BS EN 1997-1:2004 (Eurocode 7, Geotechnical design), BS 5930:2015 (Code of practice for ground investigations), CIRIA C760 (Guidance on embedded retaining wall design), BS 8002:2015 (Code of practice for earth retaining structures), CIRIA C750 (Groundwater control)

Technical parameters

Parameter	Typical value
Maximum excavation depth analysed	25 m below street level
Retaining systems designed	Secant piles, diaphragm walls, sheet piles, soil nailing
Groundwater modelling	Steady-state and transient seepage (SEEP/W or PLAXIS flow)
Constitutive models applied	Hardening Soil, Mohr-Coulomb, Hoek-Brown for rock
Design standard	Eurocode 7 (BS EN 1997-1:2004) with UK National Annex
Ground investigation input	CPT, SPT, rotary core, pressuremeter, geophysics
Typical deliverable	Fully detailed construction issue drawings and calculation package

Q&A

What permits are needed for a deep excavation in Swansea near the River Tawe?

Beyond standard building control approval, any excavation that could affect the river corridor typically requires consultation with Natural Resources Wales regarding flood risk and potential contamination. If the site lies within the Swansea Central Area boundary, additional planning conditions around construction traffic and noise management often apply, and we assist clients by preparing the geotechnical sections of those submissions.

How much does geotechnical design for a deep excavation typically cost?

For a project in Swansea the fee usually falls between £1.530 and £6.610, depending on the excavation depth, the complexity of the ground profile, and whether 3D numerical modelling is required. A straightforward single-level basement in competent ground sits at the lower end, while a multi-storey cut with propped walls and staged dewatering moves toward the upper range.

Do you handle the construction supervision after completing the design?

Yes, we provide part-time or full-time geotechnical supervision during the excavation phase, verifying that ground conditions match the design assumptions and approving any modifications under the observational method. Our engineers are familiar with the Swansea building control process and can act as the designer representative on site.
